Accounting parameters - Valid relations

Accounting parameter values may have relations as described in the table below.

By default, accounting parameter values do not have any relations to any other accounting parameter values. This means that when an accounting code is selected in the UI, the row cells in other columns will not change and the user can select any other code in those cells.

It is possible to set up relations in Settings --> Accounting Parameters --> Click on an accounting parameter -->Relations tab
There are 9 possible effects in the invoice lines accounting parameters depending on the accounting parameter relation settings.

• No relation set
  When the account is set, no other related accounting parameter is required or set automatically.


• Requirement (UI: Require specific)
  • If 1 requirement is set it will be selected automatically.
  • If 2 or more requirements are set, the user must select one of them.


• Suggestion (UI: Suggest)
  This means the user may select one of the suggestions OR any other code OR leave the cell blank.

  • If 1 suggestion is set, it will be selected automatically.
  • If 2 or more suggestions are set, none will be selected automatically but they will be displayed as suggestions when the user selects the cell.


• AnyValue (UI: Require Any)
  The user must select any of the available values. Leaving the cell blank is not permitted.


• NotApplicable (UI: Forbid)
  The cell will be disabled and it will not be possible to select any of the values.


• RequirementOrNoValue (UI: "Requirement or no value", "krav eller ingen verdi")
  • If 1 requirement is set it will be selected automatically. The user may still remove the cell value to leave a blank cell.
  • If 2 or more requirements are set, the user must select one of them OR leave the cell blank.

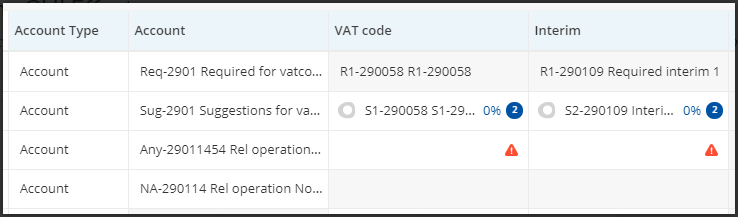

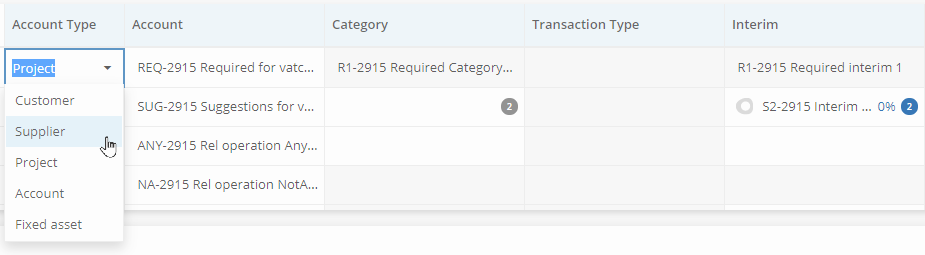

Invoice Line GUI Effects

Here we see 5 types of relations between Account and VAT Code and Interim:
[ Requirement, Suggestion, NotApplicable, AnyValue, RequirementOrNoValue ]

Target accounting parameter values must be created before relations can be made.

Example 1: Operation Requirement

However, if the accounting code 123 has a relation of operation "Requirement" to VatCode 4, then this VatCode will be automatically selected for the user.

Example: When selecting a code with required relations, the required relations are set automatically and locked.

Example 2: Operation Suggestion

An accounting parameter value 123 of type "AccountingCode" may have multiple relations to individual dimension value codes, 4,5,6 all with "operation" set to Suggestion. As a result, the user will see those suggestions 4,5,6 appear in the dimension value cell whenever the Accounting Code 123 is selected in the UI.
Note:

• If there is one relation with operation suggestion, it will be selected automatically.



• If there are 2 or more relations with operation suggestion, the suggestions will not be selected automatically but only be listed when clicking in the cell.



• It is still possible to select any other value in the dimension value cell without restrictions.

Example: When selecting a code with suggested relations, each suggestion is listed.

Example 3: Operation AnyValue

An accounting code 123 with relation to VatCodes of operation AnyValue will accept any VatCode except blank.

Example: Operation: AnyValue (not blank)When the user selects a code with AnyValueas relation, some value other than blank has to be selected.

Example 4: Operation NotApplicable

An accounting code 123with relation to VAT Code and operation NotApplicable will disable the VatCode field.

Example: VAT Code and Interim has been disabled since the relation operation was set to NotApplicable for both

Allowed operations for each relation

The leftmost column list all accounting parameters available in the system. Each of the other columns denote the accounting parameter to which a relation can be made. The characters inside the table cell indicate the end effect of the operation in the Semine invoice line UI.
For example: An AccountingCode may have a relation to VAT Code with operation Requirement, Suggestion, NotApplicable or AnyValue

Accounting Parameter	Transaction Type	Category Type	VAT Code	Interim	Dimensions
AccountingCode			RSNA	RSNA	RSNA
Fixed Asset	RS		RSNA	RSNA	RSNA
Project		RS	RSNA	RSNA	RSNA
Customer			RSNA	RSNA	RSNA
Supplier			RSNA	RSNA	RSNA
VAT Code					RSNA
Dimensions			RSNA		RSNA

There are currently no restrictions on relations. It is possible to relate a code to itself or to relate an Accounting Code to a Fixed Asset.
Creating such a relation will result in difficulties when selecting accounting parameters in the UI.

We do not recommend creating relations between account types since the UI will then automatically switch from the selected account type to the related account type which may not be desired.

Effect of operations in API and UI

The relations and operations determine which invoice line columns are automatically filled in (required) or contain suggestions (suggested) codes and which are disabled or allows any value.

Operation	Integration APIImport	Semine Settings	Semine Invoice Line GUIfor controllers	Integration APIExport
R = Requirement	Value must be filled in. Max 1 requirement relation per relation type.	Same as Integration API Import	The related "Requirement" parameter value is filled in automatically for the related column	Value must be filled
S = Suggestion	Value must be filled in. Relations to multiple suggestions is possible.	Same as Integration API Import	The user must select among all suggested values or blank.	Value may be filled
N = NotApplicable	Value must be blank.	Same as Integration API Import	The user cannot enter any value in the cell.The cell is disabled for the related column.	Value must be blank
A = AnyValue (not blank)	Value must be blank.	Same as Integration API Import	The user must select any value in the given cell.Cannot select blank.	Value must be filled

Code example

Below is an example of an AccountingCode-A with relations to cDimensionCodeValue-R1, AccountingCode-B, VatCode-R1 and TransactionTypeCode-R1.All relations of the same type, must have the same operation.

• Dimension
  The relation to type: Dimension needs an extra property typeCode: which is the name of the dimension in addition the regular code property which is one of the values of that dimension.
• Interim
  As hinted from the code name below, an Interim code is really just a regular GL Accounting Code where the relation type Interim is used
• VatCode
  The VatCode has to be a regular VatCode available in the system.
• TransactionTypeCode
  The TransactionTypeCode has to be a regular TransactionTypeCode available in the system.

[
    {
        "code": "{{AccountingCode-A}}",
        "status": "Active",
        "relations": [
            {
                "typeCode": "{{cDimensionCode-A}}",
                "code": "{{cDimensionCodeValue-R1}}",
                "type": "Dimension",
                "operation": "Requirement"
            },
            {
                "code": "{{AccountingCode-B}}",
                "type": "Interim",
                "operation": "Requirement"
            },
            {
                "code": "{{VatCode-R1}}",
                "type": "VatCode",
                "operation": "Requirement"
            },
            {
                "code": "{{TransactionTypeCode-R1}}",
                "type": "TransactionType",
                "operation": "Requirement"
            }
        ],
        "description": []
    }
]
