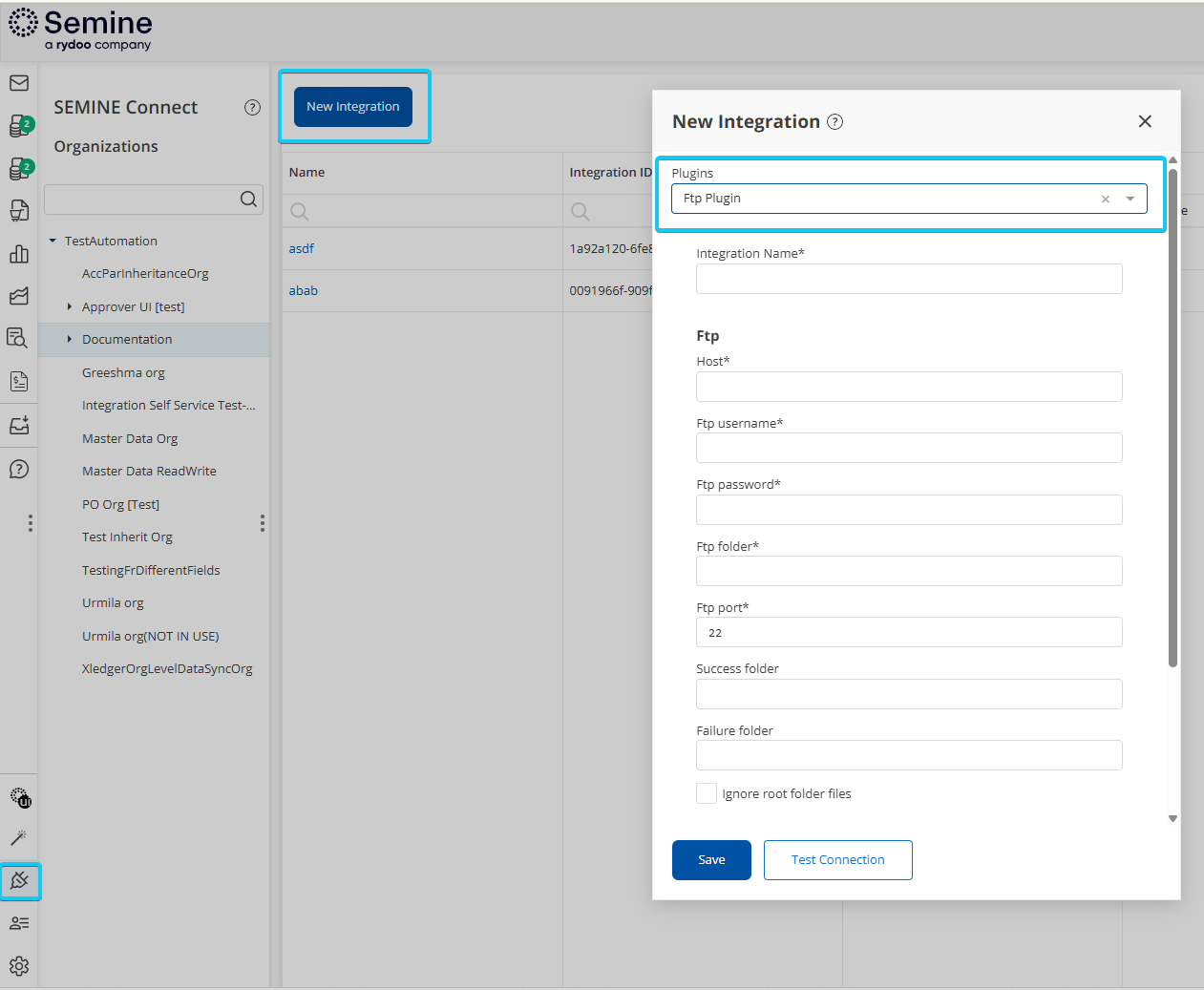

Select "Integration" in SEMINE and click on "New Integration"
In the "Plugins" field click on the drop-down menu and select Ftp Plugin
Note: The asterisks (*) indicate mandatory fields.
| FIELD | VALUE | DESCRIPTION |
|---|---|---|
| Integration Name* | Set a name for the integration | |
| Ftp | ||
| Host* | Hostname or IP address of the SFTP server | |
| Ftp username* | Username used to authenticate with the SFTP server | |
| Ftp password* | Password used to authenticate with the SFTP server | |
| Ftp folder* | Main folder used to read and write invoice files | |
| Ftp port* | 22 | Port used for SFTP connection (default is 22) |
| Success folder | Files are moved here after successful processing. If not configured, files may be deleted after processing | |
| Failure folder | Files that fail processing are moved here. If not configured, files remain in the original folder | |
| Ignore root folder files | If enabled, warnings about files located in the root folder ("/") will be suppressed | |
| Semine authentication options | ||
| Semine Email* | The username for the integration user with access to the Semine client data | |
| Semine Password* | The password for the integration user with access to the Semine client data |
How the Ftp Plugin works
The Ftp Plugin enables bi-directional communication between SEMINE and an SFTP server using UBL (XML) invoice files.
Send invoices (SEMINE → SFTP)
When invoices are posted in SEMINE, the plugin exports them as UBL (XML) files and uploads them to the configured SFTP folder.
- Each invoice is exported and uploaded as a UBL (XML) file
- The file name is based on the invoice ID (for example: 12345.xml)
- Files are uploaded securely to the configured SFTP server
Receive invoices (SFTP → SEMINE)
The plugin reads invoice files from the configured SFTP folder and imports them into SEMINE.
- All XML files in the configured folder are processed
- Valid files are imported as invoices
- After processing:
- Successfully processed files are moved to the Success folder
- Failed files are moved to the Failure folder
Folder behavior
- Main folder (Ftp folder): Used for both reading and uploading invoice files
- Success folder: Files are moved here after successful processing. If not configured, files will be deleted after processing
- Failure folder: Stores files that could not be processed
Tip: It is recommended to configure both Success and Failure folders to keep the main folder clean and avoid reprocessing the same files.
Test connection
After entering the configuration details, click on Test Connection to verify that SEMINE can connect to the SFTP server.
Warning: Ensure that the provided Ftp credentials and folder paths are correct. Incorrect configuration may prevent invoices from being imported or exported.
